برند : HRUI
دستهبندی : تجهیزات شبکه

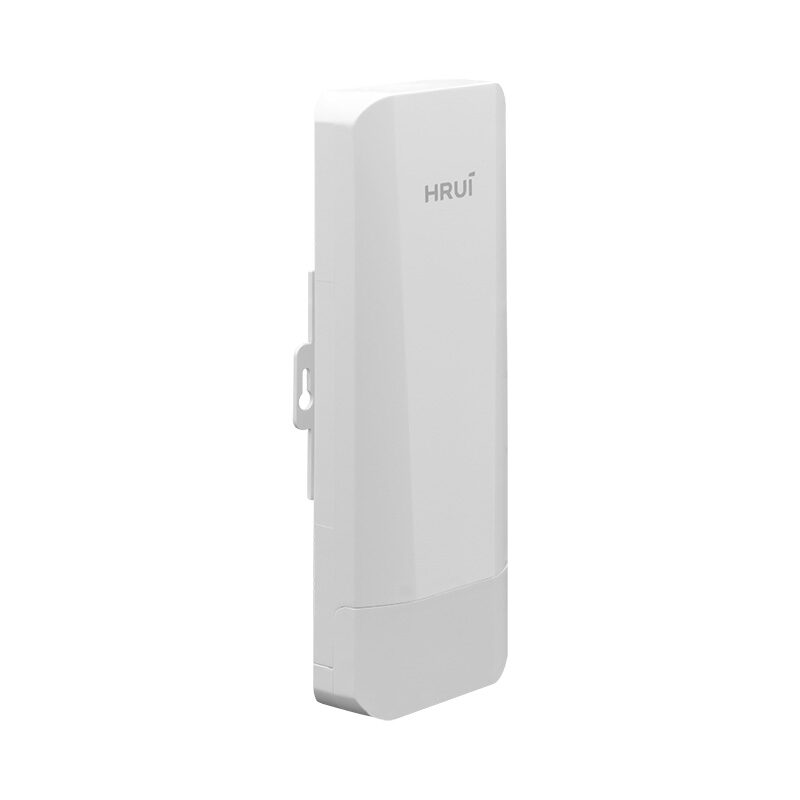

رادیو وایرلس اچ ار یو ای HRUI HR-CPE90B-5
– یک پورت PoE با سرعت 10/100/1000Mbps
– طراحی بدنه با سطح حفاظت IP65، مناسب برای شرایط سخت محیطی در فضای باز
– پشتیبانی از تأمین برق از راه دور با PoE 24V و تأمین برق محلی با DC 12V
– پشتیبانی از انتقال بی‌سیم WiFi با پروتکل 802.11b/g/n و سرعت 900Mbps
– – آنتن پلاریزاسیون دوگانه 14dBi با تکنولوژی 2T2R برای پایداری بیشتر سیگنال در محیط‌های پر نویز با دریافت امواج در دو جهت افقی و عمودی، امکان انتقال تا فاصله 5 کیلومتر در محیط بدون مانع
– پشتیبانی از روش‌های نصب دیواری و نصب بر روی پایه، با ساختاری ساده
– پشتیبانی حداکثر از ارتباط نقطه به هشت نقطه
| Hardware Features & Performance | |
| Model | HR-CPE90B-5 |
| Wireless Technology | 802.11a/n/ac 900Mbps 2T2R technology |
| Interface |
WAN/LAN * 1 10/100/1000Mbps adaptive network port DC power interface, suitable for connecting power plugs with an outer diameter of 5.5mm and an inner diameter of 2.1mm and a length of 9.5mm or more |
| Button | Reset to factory/digital composite button, short press to adjust digital tube value, long press for 6 seconds to restore factory settings |

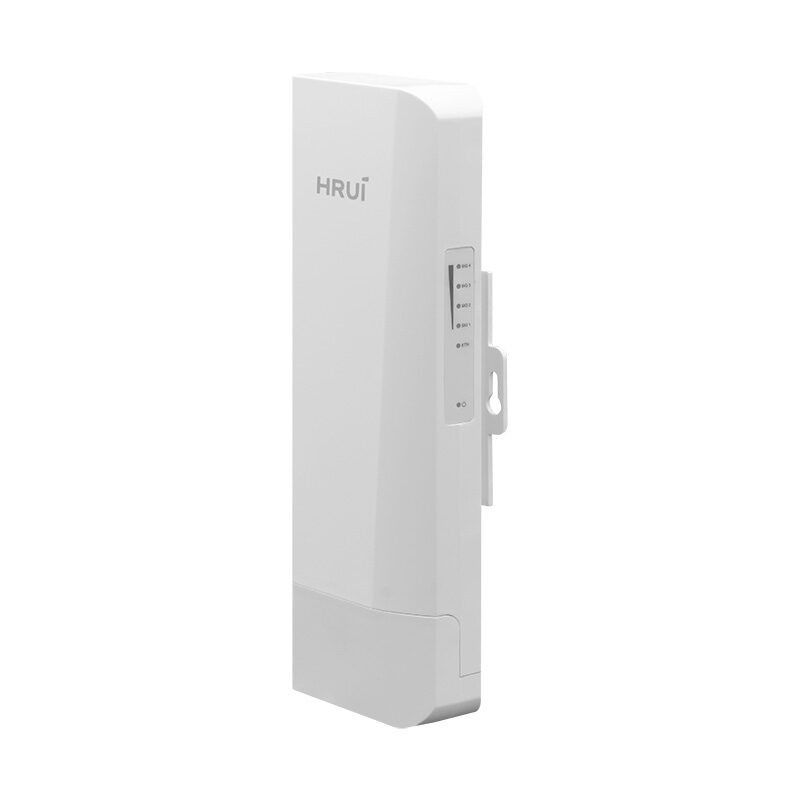

| Indicator Light |
PWR power indicator light, ETH network port status indicator light SIG1/SIG2/SIG3/SIG4 signal strength indicator light, digital tube |
| Antenna | Built in dual polarization 14dBi directional plate antenna (horizontal lobe angle 60 °, vertical lobe angle 60 °) |
| Power supply |
24V/1A PoE remote power supply DC 12V/1A, external positive and internal negative |
| Structure Information |
Product Dimensions :258*90*56.4mm Packaging Dimensions :280*96*96mm Product Net Weight:0.35kg Product Gross Weight:0.7kg |
| Packing Information |
Carton Dimensions :522*298*410mm Packing Quantity: 20PCS Packing Weight: 15kg |
| Package Contents | Wireless Digital Bridge * 1, 24V PoE power adapter * 1, plastic clamp * 2, Ethernet cable * 1, manual (including warranty card)*1 |

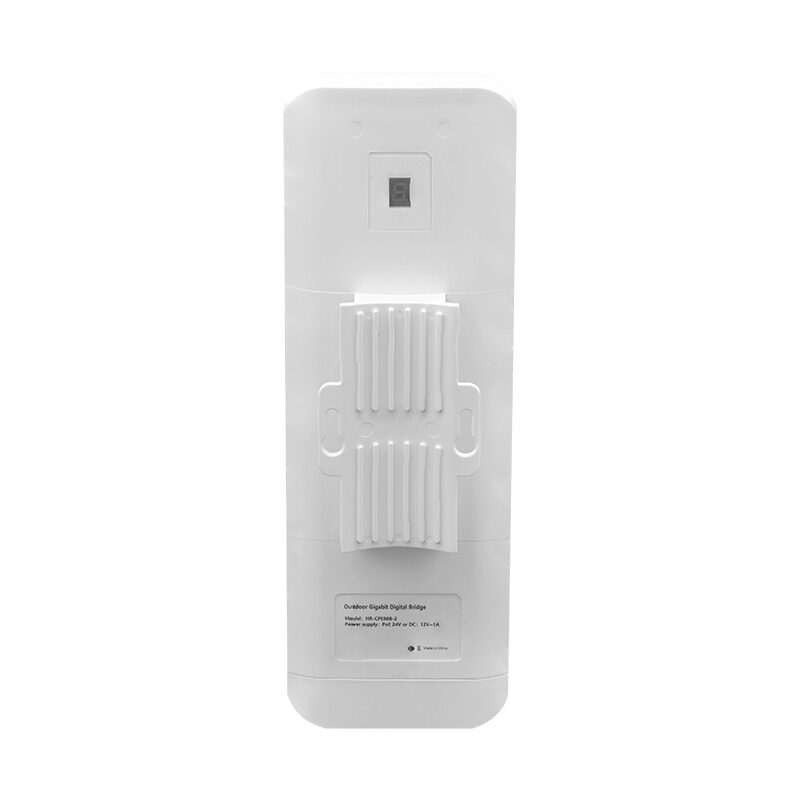

| Installation | Pole mounted installation |
| Operating Temperature | -30℃～55℃ |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10%~90%，non condensing |
| Storage Humidity | 5%~95%，non condensing |
| Frequency Range |
5G: UNII-1: 5.15~5.35GHz UNII-2: 5.47~5.725GHz UNII-3: 5.725~5.825GHz |
| Channel Distribution | 36、40、44、48、52、60、64、149、153、157、161、165 |
| Modulation Mode |
802.11a: OFDM (BPSK, QPSK,16-QAM) 802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM) |
| Transmission Speed | 11a maximum 54Mbps, 11n maximum 300Mbps,11ac maximum 900Mbps |
| Receiving Sensitivity |
11a：≤-86±1.5dBm @6Mbps，≤-69±1.5dBm @54Mbps 11n 20MHz：≤-85±1.5dBm@MCS0，≤-67±1.5dBm @MCS7 11n 40MHz：≤-82±1.5dBm @MCS0，≤-64±1.5dBm @MCS7 11ac 20MHz：≤-84±1.5dBm @MCS0，≤-59±1.5dBm @MCS8 11ac 40MHz：≤-82±1.5dBm @MCS0，≤-56±1.5dBm @MCS9 11ac 80MHz：≤-78±1.5dBm @MCS0，≤-52±1.5dBm @MCS9 |
| Transmission Power |
11a: 23dBm±1.5dBm@54Mbps 11n(20/40MHz): 23dBm±1.5dBm@MCS7 11ac(40/80MHz): 23dBm±1.5dBm@MCS9 |
| Transmission Distance | 5km |
| Software Features & Performance | |
| Working Mode | Bridge access point, bridge client |
| Networking Method | Point to point, point to many points (within eight points) |
| Management Style | Chinese and English WEB management |
| State | System status, bridge status, interface status |
| Bridge Configuration |
Wireless mode: Bridge access point/Bridge client Bridge access point: bridging SSID, bridging password, wireless protocol, wireless bandwidth, wireless channel, wireless power, terminal restrictions Bridge client: bridging SSID [scan], encryption method, bridging password, peer MAC address, wireless channel, wireless power WiFi settings: WiFi switch, hidden WiFi, WiFi name, encryption method, WiFi password Advanced settings: RTS/CTS threshold, Beacon cycle, sharding threshold |
| Network Settings |
Address acquisition method: automatic acquisition/static IP IP address, subnet mask, gateway, DNS1, DNS2 |
| System Management | Device properties, password modification, system maintenance (restoring factory configuration/downloading backup configuration/uploading recovery configuration/local upgrade), restart |
| Settings Wizard | Wireless Configuration – Network Configuration – Complete |
| Log | Export/Refresh |
