برند : HRUI
دستهبندی : تجهیزات شبکه

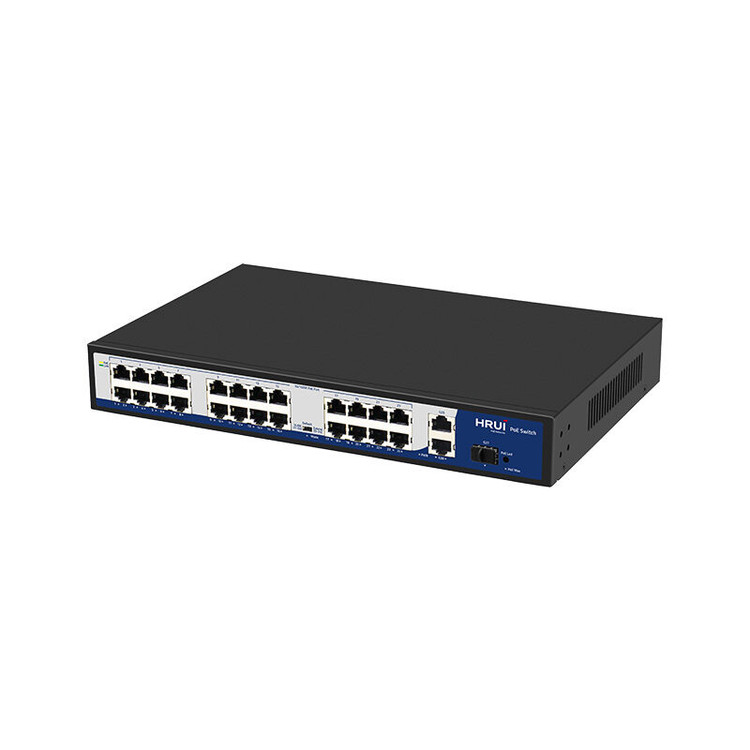

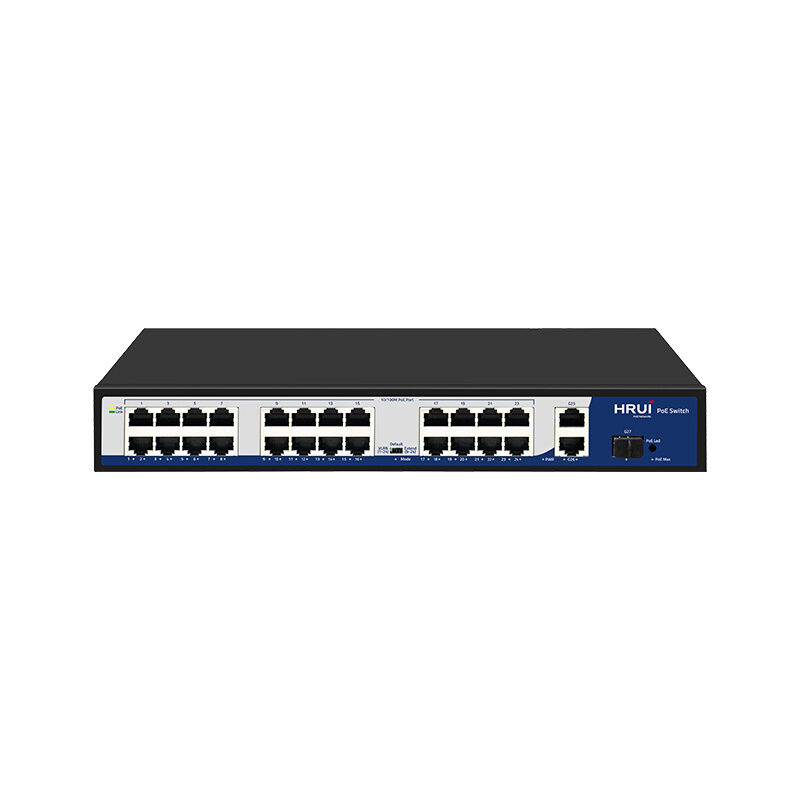

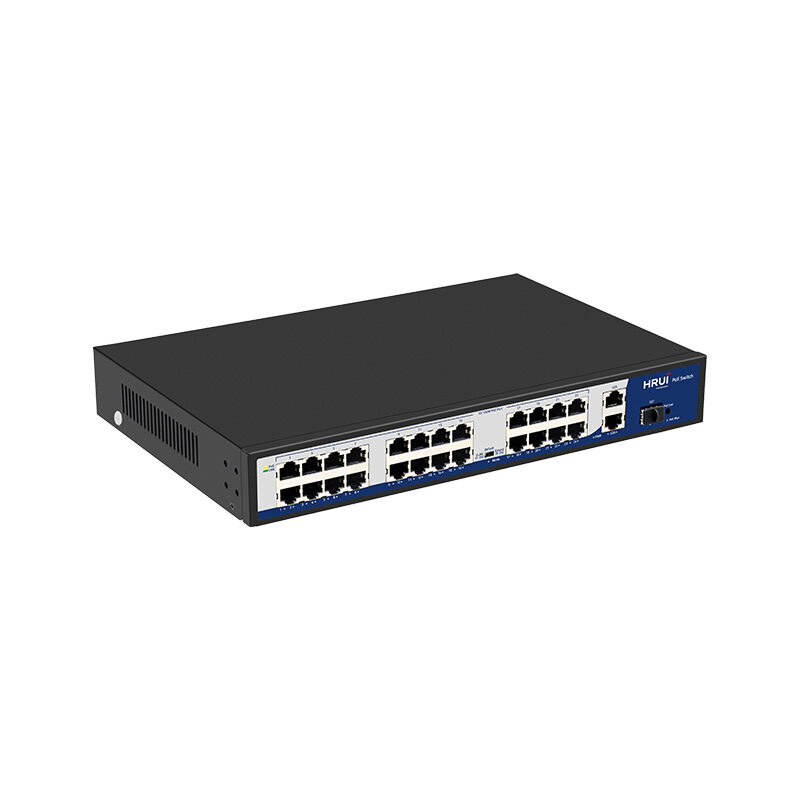

سوئیچ PoE اچ ار یو ای HRUI HR900-AF-2421GS-300
– سوئیچ 24 پورت 10/100Mbps PoE و 2 پورت Uplink گیگ و یک پورت SFP گیگ
– سوئیچ PoE
– خروجی 300 وات
– 30 ماه وارانتی بی قید و شرط
| Hardware Features & Performance | ||
| Model | HR900-AF-2421GS-300 | |
| General | Interface | 24 *100Mbps PoE ports
2 *Gigabit RJ45 ports 1 *Gigabit SFP port |
| Port Standard | IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) |
|
| Performance | Switching Capacity | 10.8Gbps |
| Packet Forwarding Rate | 8.03Mpps | |
| Packet Buffer | 768Kbit | |
| MAC Address Table | 2K | |
| Transmission Method | Store and Forward | |
| PoE | PoE Standard | IEEE802.3af （15.4W）
IEEE802.3at （30W） |
| POE Port Output Voltage | DC 44-57V | |
| PoE Ports | Port 1-24 PoE power output <30W | |
| PoE Power Budget | 290W | |
| Physical | Power Supply | AC 100-240V 50/60Hz
DC 52V 5.76A |
| Mainboard Power Consumption | 6.6W | |
| Structure Information | Product Dimensions :320*207*45mm
Packaging Dimensions : 370*290*85mm Product Net Weight:1.79KG Product Gross Weight:2.32KG |
|
| Packing Information | Carton Dimensions :445*310*390mm
Packing Quantity: 5PCS Packing Weight: 12.6KG |
|
| Packing List | switch 1pcs, power cord 1pcs, instruction manual 1pcs，certificate of qualification 1pcs | |
| Fan Quantity | 0 | |
| Installation | desktop | |
| Environment | Surge Protection | Surge protection: common mode 4KV, differential mode 2KV
Electrostatic ESD: Air 8KV, Contact 6KV (Class B) |
| Operating Temperature | 0~40°C | |
| Storage Temperature | -40 °C to 70 °C | |
| Operation Humidity | 10%~90%，non condensing | |
| Storage Humidity | 5%~95%，non condensing | |
| Hardware Features & Performance | ||
| Buttons&
Indicator Lights |
PWR | On: Powered on
Off: Powered off |
| Mode | On：VLAN
Flashing：Extend Off：Default |
|
| 1-27 Green Light | On: Link normal
Off: Link blocked Flashing: Data transmitting |
|
| 1-24 Yellow Light (PoE) | On: PoE power on
Off: PoE powered off |
|
| PoE Max | On: indicates PoE power usage is less than 90%
Flashing: indicates PoE power usage of 90% ≤ P ≤ 95% Off: indicates that PoE power is used at 95%<P<100% |
|
| PoE LED Buttons | Dual color light selection: default green (link data), switch yellow light (PoE) | |
| VLAN/Default/Extend Modes Buttons | VLAN: Isolation mode, 1-24 ports isolated from each other, communicating with 25-27 ports, port PoE watchdog mode enabled
Default: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive, port PoE watchdog mode is turned off Extend: Link extension mode, 9-24 ports PoE power supply and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps, port PoE watchdog mode is enabled |
|
