برند : HRUI
دستهبندی : تجهیزات شبکه

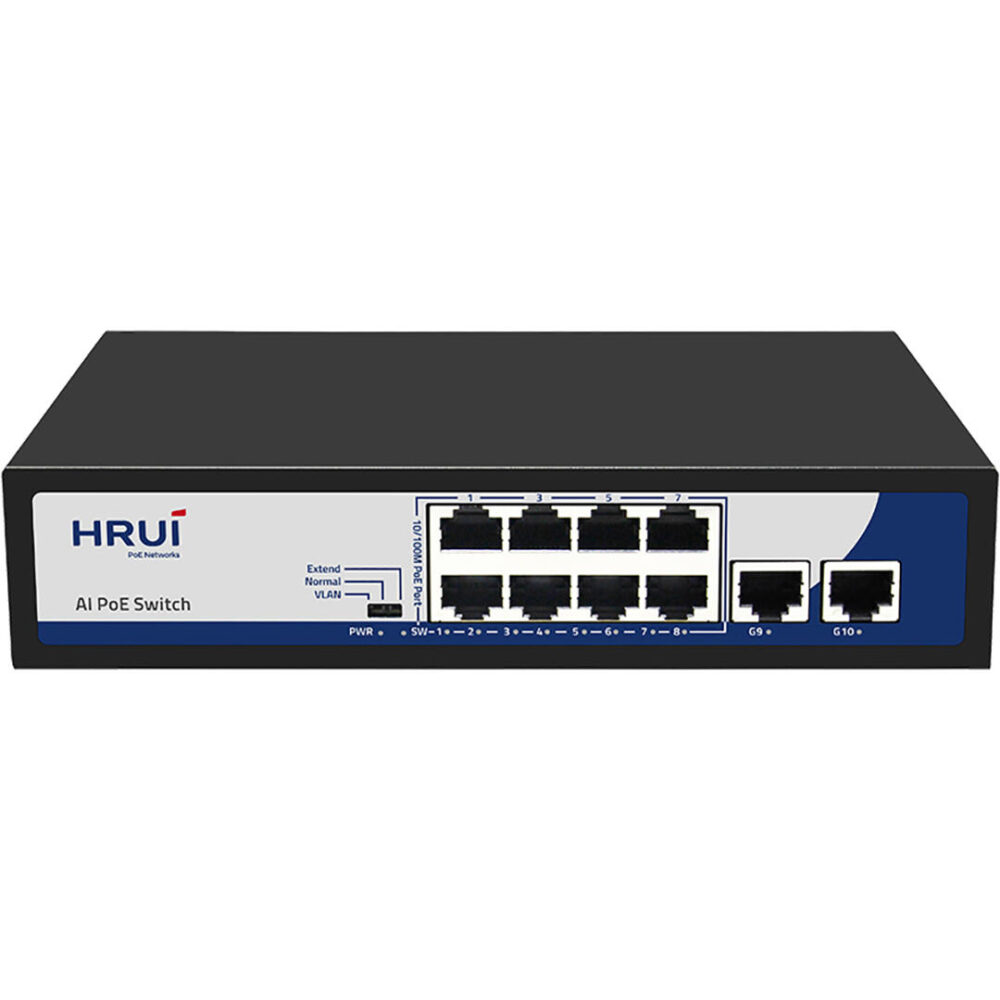

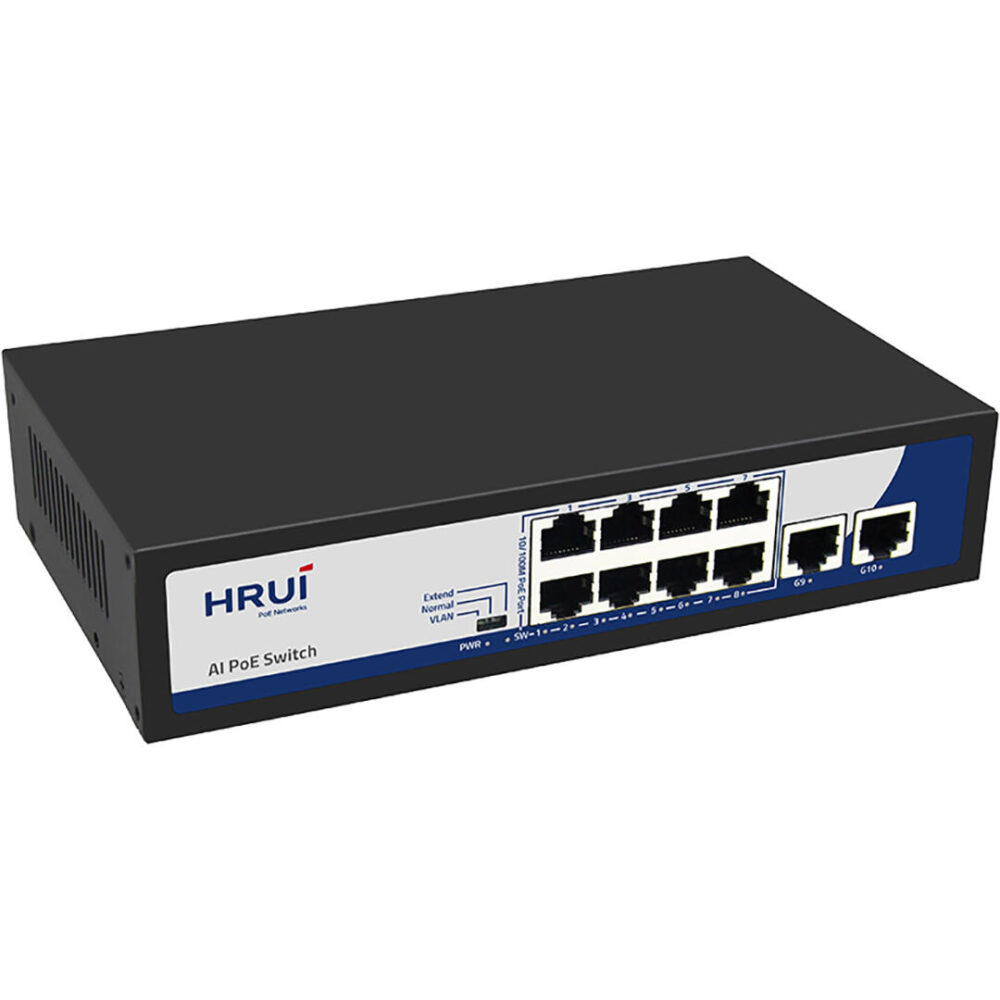

سوئیچ PoE اچ ار یو ای HRUI HR900-AF-82GN
– سوئیچ 8 پورت 10/100Mbps PoE و 2 پورت Uplink گیگ
– سوئیچ PoE
– توان کل 120 وات
– 30 ماه وارانتی بی قید و شرط
|
Specification |
|
|
I/O Interface |
|
|
Power |
AC input (100-240 V) |
|
Ethernet |
8 Port 10/100M PoE |
|
2 Port 10/100/1000M Ethernet Uplink |
|
|
Performance |
|
|
Switching Capacity |
5.6Gbps |
|
Throughput |
4.166Mpps |
|
Packet Buffer |
448K |
|
MAC Address |
2K |
|
Jumbo Frame |
9216bytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hour |
|
Standard |
|
|
Network Protocol |
IEEE802.3 (10Base-T) |
|
IEEE802.3u (100Base-TX) |
|
|
IEEE802.3x (Flow control) |
|
|
PoE Protocol |
IEEE802.3af (15.4W) |
|
IEEE802.3at (30W) |
|
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A |
|
EMS: EN61000-4-2 (ESD) |
|
|
EN61000-4-4 (EFT) |
|
|
IEN61000-4-5 (Surge) |
|
|
Network Medium |
10Base-T: Cat3,4,5 or above UTP(≤100m) |
|
100Base-TX: Cat5 or above UTP(≤100m) |
|
|
1000Base-TX: Cat5 or above UTP(≤100m) |
|
|
Protection |
|
|
Security Certificae |
CE、FCC、RoHS |
|
Environment |
|
|
Working Environment |
Working Temperature: -10~50°C |
|
Storage Temperature: -40~85°C |
|
|
Working Humidity: 10%~90%，non-condensing |
|
|
Storage Temperature: 5%~95%，non-condensing |
|
|
Working Height: Maximum 10,000 feet |
|
|
Storage heigh: Maximum 10,000 feet |
|
|
Mechanical |
|
|
Structure Size |
Product Size: 200*118*44mm |
|
Package Size: 245*190*60mm |
|
|
Product Net-Weight: 0.6kg |
|
|
Product Gross-Weight: 0.9kg |
|
|
Packing Info |
MEAS: 505*320*400mm |
|
Packing Qty: 20 unit |
|
|
Packing weight: 19 KG |
|
|
Power Voltage |
Input Voltage: AC 100-240 V |
|
Output Voltage: 52V2.3A |
|
|
Package List |
Switch 1 pcs, Power cord 1 pcs, User manual 1 pcs, Certification 1 pc |
|
Indication |
|
|
DIP Switch |
VLAN: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on |
|
Normal : Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed |
|
|
Extend: Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on |
|
|
LED Indicators |
PWR、SW、1-10 Link&ACT |
