برند : HRUI
دستهبندی : تجهیزات شبکه

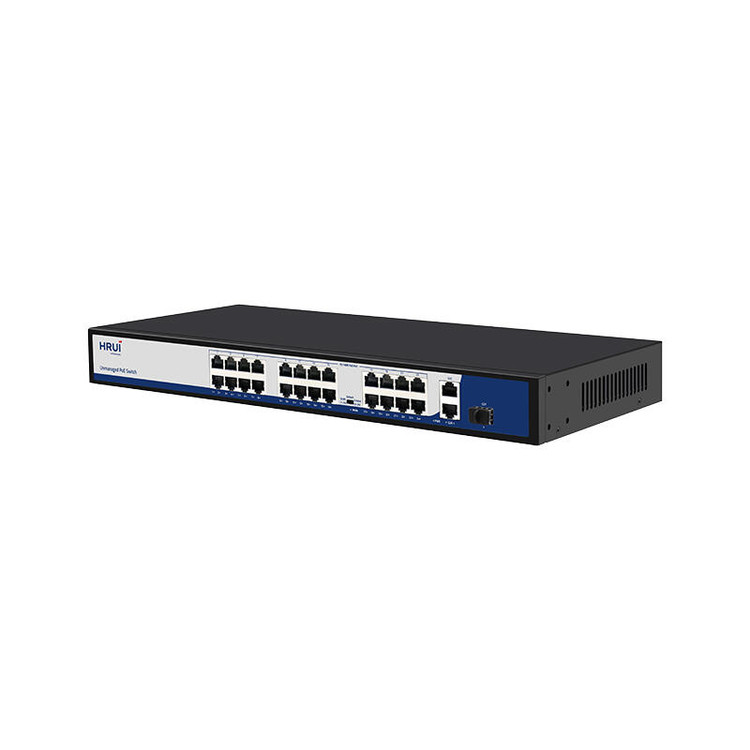

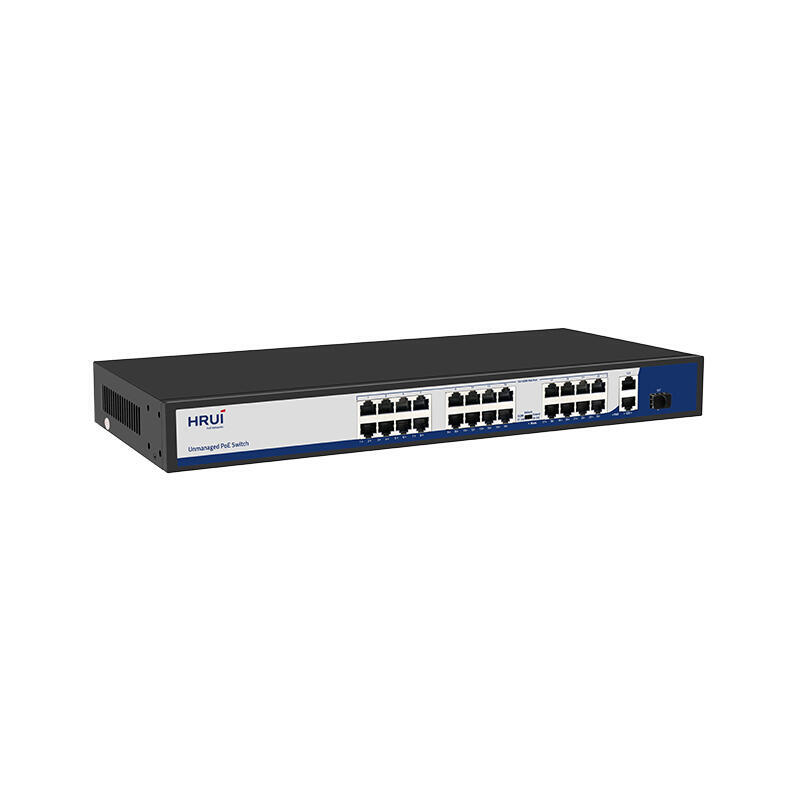

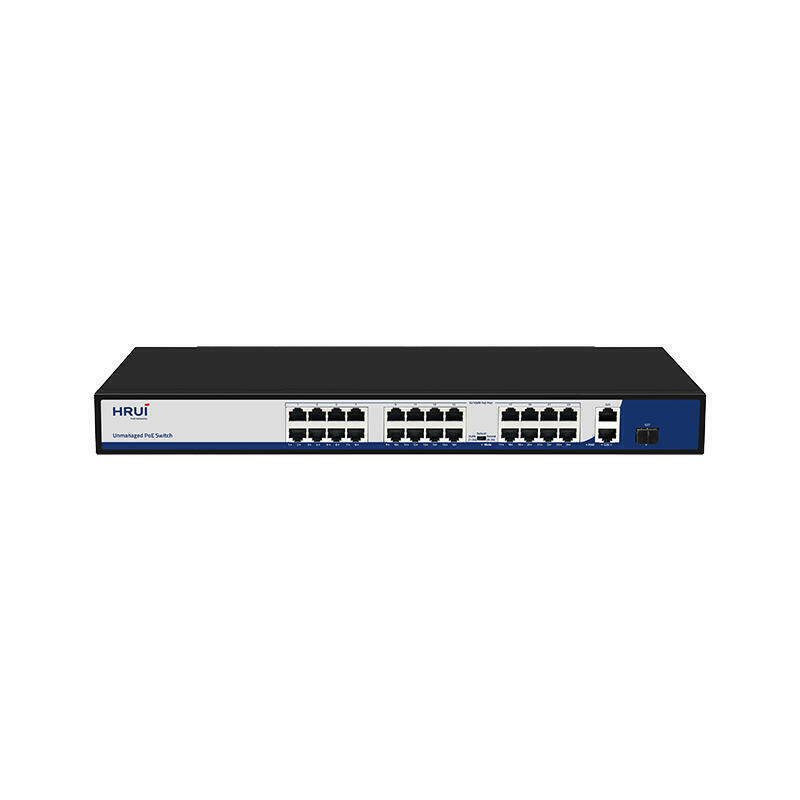

سوئیچ PoE اچ ار یو ای HRUI HR901-AF-2421GS-400
– سوئیچ 24 پورت 10/100Mbps PoE و 2 پورت Uplink گیگ و 1 پورت فیبر نوری
– سوئیچ PoE
– توان کل 400 وات
– پورت های 24~9 ارسال دیتا تا 250 متر (Extend)
– 30 ماه وارانتی بی قید و شرط
|
Specification |
|
|
I/O Interface |
|
|
Power |
Input: AC 100-240V, 50/60Hz |
|
Ethernet |
24 Port 10/100M PoE + 2 Port 1000M Ethernet Uplink+1 Port 1000M SFP |
|
Performance |
|
|
Power Budget |
52V 7.69A 400Watt |
|
Switching Capacity |
10.8Gbps |
|
Forwarding Rate |
8.035Mpps |
|
Packet Buffer |
1.5Mb |
|
MAC Address |
2K |
|
Jumbo Frame |
9216bytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hours |
|
Standard |
|
|
Network protocol |
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3ab |
|
PoE Protocol |
IEEE802.3af (15.4W) |
|
IEEE802.3at (30W) |
|
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A |
|
EMS: EN61000-4-2 (ESD) |
|
|
EN61000-4-4 (EFT) |
|
|
EN61000-4-5 (Surge) |
|
|
Network Medium |
10BASE-T: Cat 3, 4, 5 UTP(≤100 meter) |
|
100BASE-TX: Cat5 or more UTP (≤100 meter) |
|
|
1000Base-TX: Cat5 or more UTP/STP(≤100 meter) |
|
|
Optical Media |
Multimode fiber: 50/125, 62.5/125, 100/140um |
|
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um |
|
|
Protection |
|
|
Certificate |
CE, FCC, RoHS |
|
Environment |
|
|
Environment |
Working Temperature: -10~50°C |
|
Storage Temperature: -40~85°C |
|
|
Working Humidity: 10%~90%，non-condensing |
|
|
Storage Temperature: 5%~90%，non-condensing |
|
|
Working Height: Maximum10,000 feet |
|
|
Storage height: Maximum 10,000 feet |
|
|
Physical Features |
|
|
Dimension |
Product Dimension (L*W*H): 440*205*44mm |
|
Package Dimension (L*W*H): 500*290*85mm |
|
|
N.W: 2.2kg |
|
|
G.W: 2.5kg |
|
|
Packing Info |
Carton MEAS: 520*445*315mm |
|
Packing Qty: 5 units |
|
|
Packing Weight: 14.5KG |
|
|
Power Voltage |
Input Voltage: AC 100-240 V |
|
Power supply: 52V7.69A |
|
|
Package List |
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair |
|
Indicators |
|
|
DIP Switch |
VLAN : Port isolation mode. In this mode, the PoE ports (1-24) of the switch cannot communicate with each other, and can only communicate with the UP-link port |
|
OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive |
|
|
Extend : Link extension mode, 9-24 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
|
|
LEDs |
PWR(power supply)，SW(DIP)，1-27(Link&Data) |
