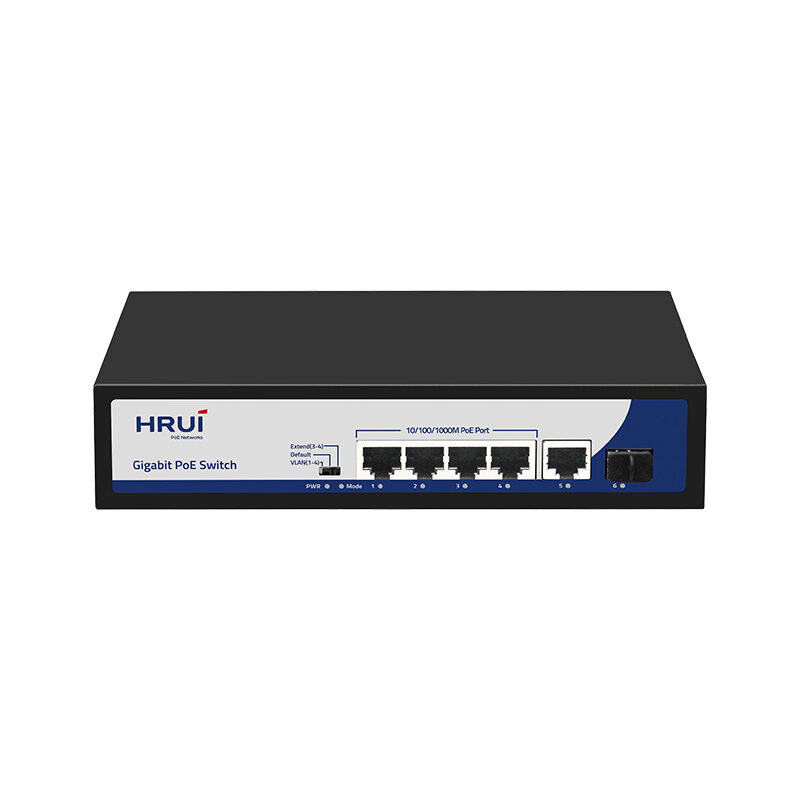

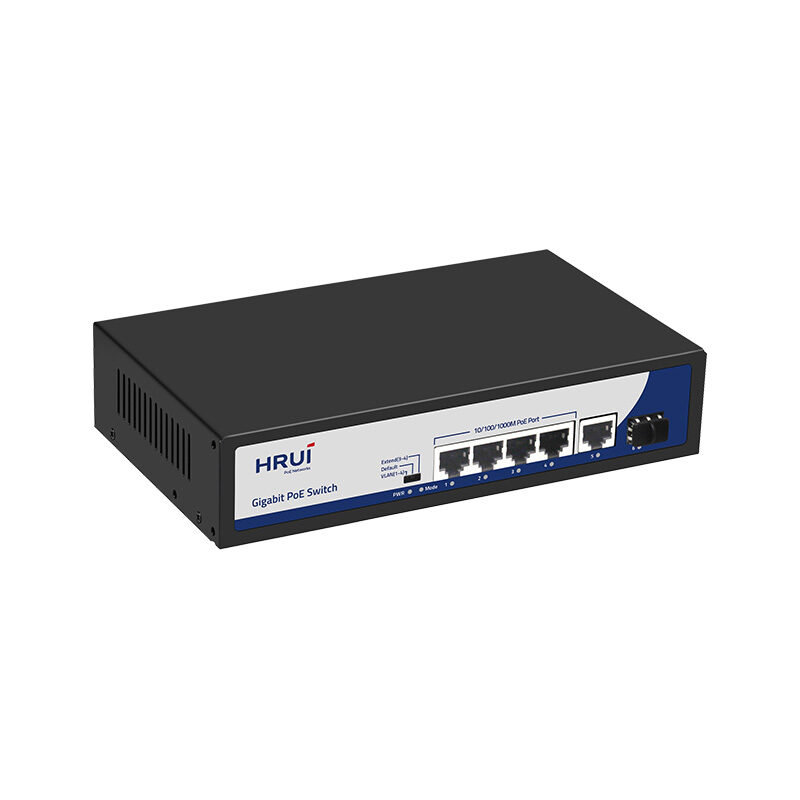

سوئیچ PoE اچ ار یو ای HRUI HR901-AFG-411NS-120

موجود در انبار فروشگاه کم نیو
ارسال از امروز

3,950,000 تومان

مشاهده محصول در سبد خرید

– سوئیچ 4 پورت 10/100Mbps PoE و 1 پورت Uplink گیگ و 1 پورت SPF Uplink
– سوئیچ PoE
– توان کلی 120 وات
– 30 ماه وارانتی بی قید و شرط



Specifications
I/O Interface
Power Input: AC 100-240V, 50/60Hz
Ethernet 4 Port 10/100/1000M PoE +1 Port 1000M RJ45+1 Port 1000M SFP
Performance
Switching Capacity 12 Gbps
Forwarding Rate 8.928Mpps
Packet Buffer 1Mbit
MAC Address 2K
Transfer Mode Store and forward
Standard
Network protocol IEEE802.3

IEEE802.3u

IEEE802.3ab

IEEE802.3z

IEEE802.3x
PoE Protocol IEEE802.3af （15.4W）

IEEE802.3at （30W）

POE port output voltage: DC 44-57V

POE power supply core: 1/2+; 3/6-
Network Medium 10BASE-T: Cat 3、4、5 UTP(≤100 meter)

100BASE-TX: Cat5 or more UTP (≤100 meter)

1000Base-TX : Cat5 or more UTP/STP(≤100 meter)
Optical Media Multimode fiber  : 50/125、62.5/125、100/140um

Single mode fiber : 8/125、8.7/125、9/125、10/125um
Protection
Certificate CE、FCC、RoHS
Environment
Environment Working Temperature：-10~50°C

Storage Temperature：-40~70°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature：5%~95%，non-condensing
Physical Features
Dimension Product Dimension : 200*118*44.5mm

Package Dimension : 245*190*60mm

N.W：0.65kg

G.W：0.95kg
Packing Info Carton MEAS：520*320*400mm

Packing Qty：20 units

Packing Weight：20KG
Power Voltage Input Voltage ：AC 100-240 V

Power supply：52V2.3A
power Product power: maximum 10W

POE power: maximum 110W
Package List Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc
Indicators
DIP Switch VLAN : Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

Default : Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100/1000M adaptive;

Extend : Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
LEDs PWR（power supply），Mode（DIP），1-6（Link&Data）
‌‌‌‌‌‌
