برند : HRUI
دستهبندی : تجهیزات شبکه

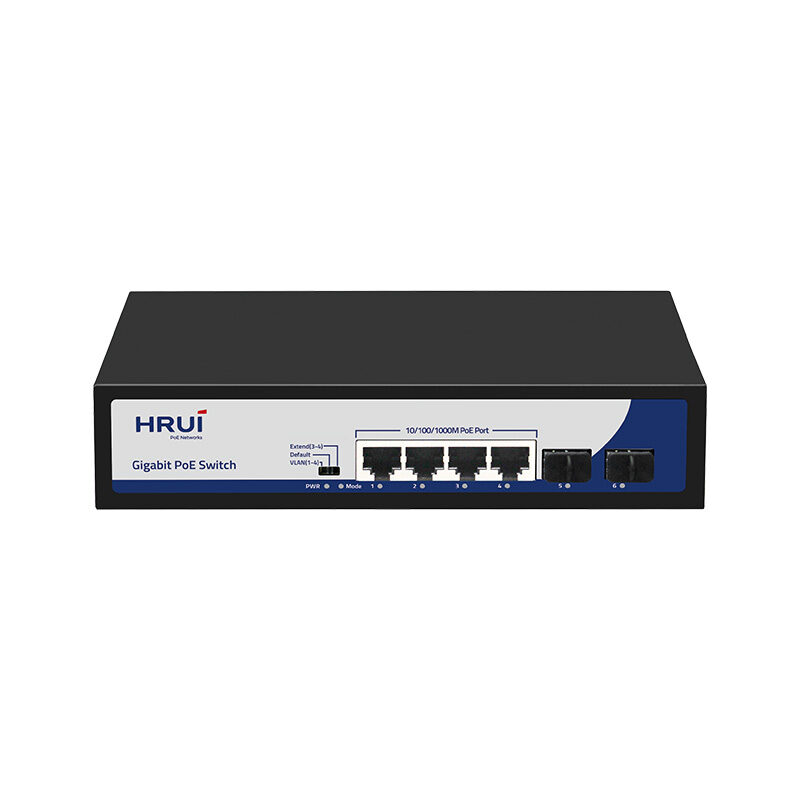

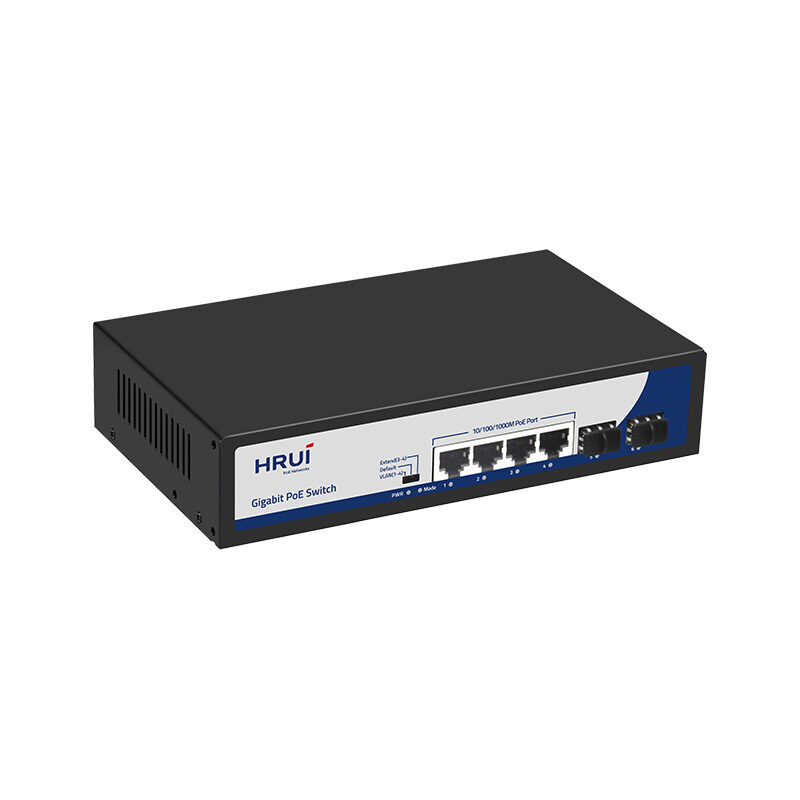

سوئیچ PoE اچ ار یو ای HRUI HR901-AFG-42NS-120
– سوئیچ 4 پورت 10/100Mbps PoE و 2 پورت SPF Uplink
– سوئیچ PoE
– توان کلی 120 وات
– 30 ماه وارانتی بی قید و شرط
| Specifications | |
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | 4 Port 10/100/1000M PoE +2 Port 1000M SFP |
| Performance | |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 8.928Mpps |
| Packet Buffer | 1Mbit |
| MAC Address | 2K |
| Transfer Mode | Store and forward |
| Standard | |
| Network protocol | IEEE802.3
IEEE802.3u IEEE802.3ab IEEE802.3z IEEE802.3x |
| PoE Protocol | IEEE802.3af （15.4W）
IEEE802.3at （30W） POE port output voltage: DC 44-57V POE power supply core: 1/2+; 3/6- |
| Network Medium | 10BASE-T: Cat 3、4、5 UTP(≤100 meter)
100BASE-TX: Cat5 or more UTP (≤100 meter) 1000Base-TX : Cat5 or more UTP/STP(≤100 meter) |
| Optical Media | Multimode fiber : 50/125、62.5/125、100/140um
Single mode fiber : 8/125、8.7/125、9/125、10/125um |
| Protection | |
| Certificate | CE、FCC、RoHS |
| Environment | |
| Environment | Working Temperature：-10~50°C
Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~95%，non-condensing |
| Physical Features | |
| Dimension | Product Dimension: 200*118*44.5mm
Package Dimension : 245*190*60mm N.W：0.65kg G.W：0.95kg |
| Packing Info | Carton MEAS：520*320*400mm
Packing Qty：20 units Packing Weight：20KG |
| Power Voltage | Input Voltage ：AC 100-240 V
Power supply：52V2.3A |
| power | Product power: maximum 10W
POE power: maximum 110W |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc |
| Indicators | |
| DIP Switch | VLAN : Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
Default : Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100/1000M adaptive; Extend : Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
| LEDs | PWR（power supply），Mode（DIP），1-6（Link&Data） |
