برند : HRUI
دستهبندی : تجهیزات شبکه

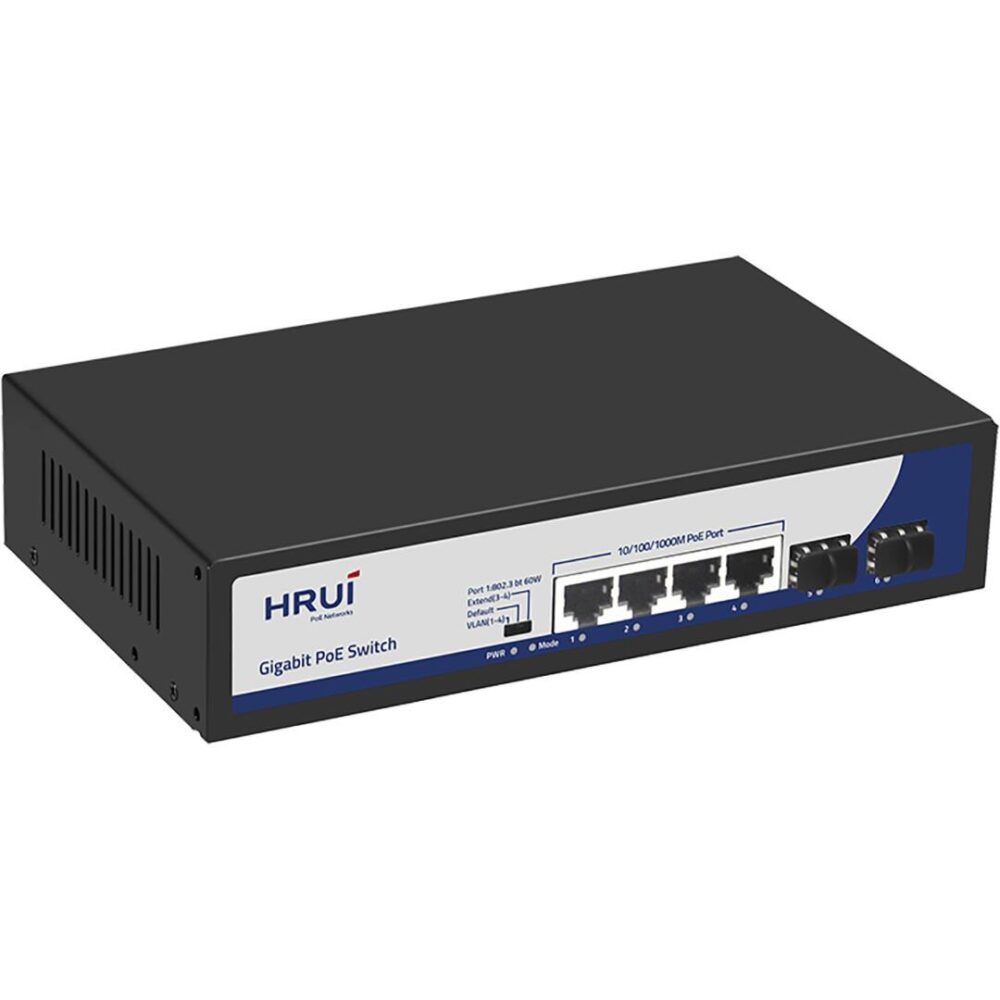

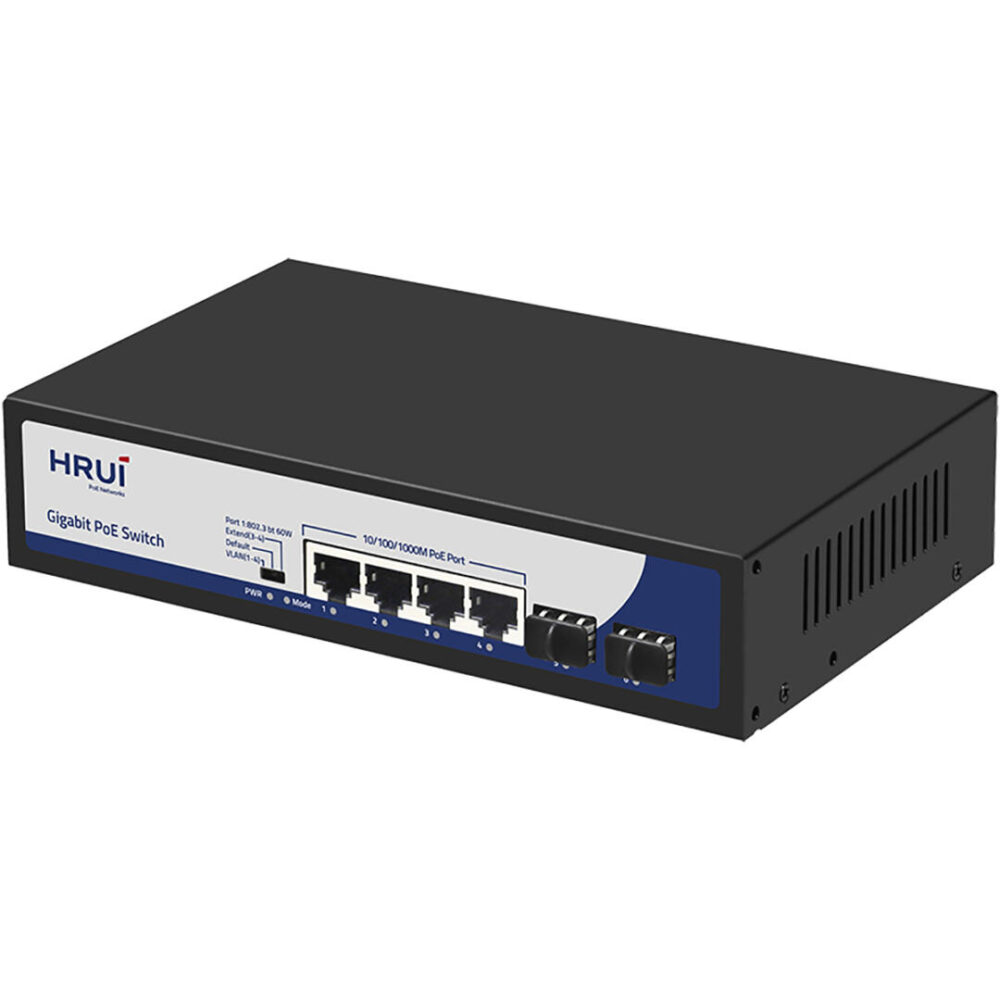

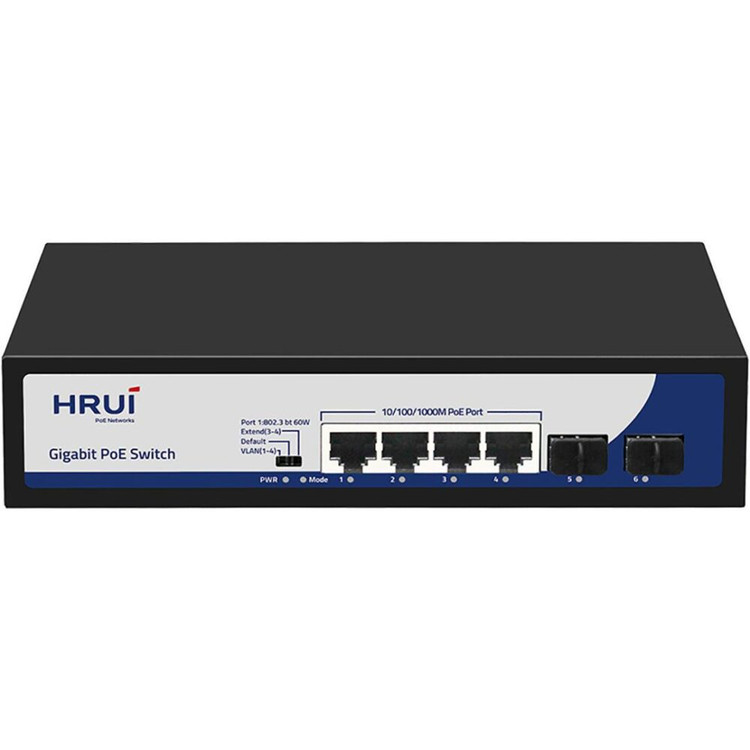

سوئیچ PoE اچ ار یو ای HRUI HR901- AXG-42NS-120
– سوئیچ 4 پورت PoE گیگ و 2 پورت Uplink SFP
– سوئیچ PoE
– توان کل 120 وات
– پشتیبانی پورت اول از BT 60W
– پورت 4-3 انتقال دیتا تا مسافت 250 متر در حالت Extend
– 30 ماه وارانتی بی قید و شرط
|
Specification |
|
|
I/O Interface |
|
|
Power |
Input: AC 100-240V, 50/60Hz |
|
Ethernet |
4 Port 10/100/1000M PoE +2 Port 1000M SFP |
|
Performance |
|
|
Switching Capacity |
12Gbps |
|
Forwarding Rate |
8.928Mpps |
|
Packet Buffer |
1Mb |
|
MAC Address |
2K |
|
Jumbo Frame |
9216bytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hours |
|
Standard |
|
|
Network protocol |
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x |
|
PoE Protocol |
IEEE802.3af (15.4W) |
|
IEEE802.3at (30W) |
|
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A |
|
EMS: EN61000-4-2 (ESD) |
|
|
EN61000-4-4 (EFT) |
|
|
EN61000-4-5 (Surge) |
|
|
Network Medium |
10BASE-T: Cat 3、4、5 UTP(≤100 meter) |
|
100BASE-TX: Cat5 or more UTP (≤100 meter) |
|
|
1000Base-TX : Cat5 or more UTP/STP(≤100 meter) |
|
|
Optical Media |
Multimode fiber: 50/125、62.5/125、100/140um |
|
Single mode fiber: 8/125、8.7/125、9/125、10/125um |
|
|
Protection |
|
|
Certificate |
CE、FCC、RoHS |
|
Environment |
|
|
Environment |
Working Temperature: -10~50°C |
|
Storage Temperature: -40~85°C |
|
|
Working Humidity: 10%~90%，non-condensing |
|
|
Storage Temperature: 5%~90%，non-condensing |
|
|
Working Height: Maximum 10,000 feet |
|
|
Storage height: Maximum 10,000 feet |
|
|
Physical Features |
|
|
Dimension |
Product Dimension (L*W*H): 200*118*44mm |
|
Package Dimension (L*W*H): 245*190*60mm |
|
|
N.W: 0.6kg |
|
|
G.W: 0.9kg |
|
|
Packing Info |
Carton MEAS: 505*320*400mm |
|
Packing Qty: 20 units |
|
|
Packing Weight: 19KG |
|
|
Power Voltage |
Input Voltage : AC 100-240 V |
|
Power supply: 52V2.3A |
|
|
Package List |
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc |
|
Indicators |
|
|
DIP Switch |
VLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port |
|
Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100/1000M adaptive |
|
|
Extend: Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
|
|
LEDs |
PWR(power supply)，Mode(DIP)，1-6(Link&Data) |
