برند : HRUI
دستهبندی : تجهیزات شبکه

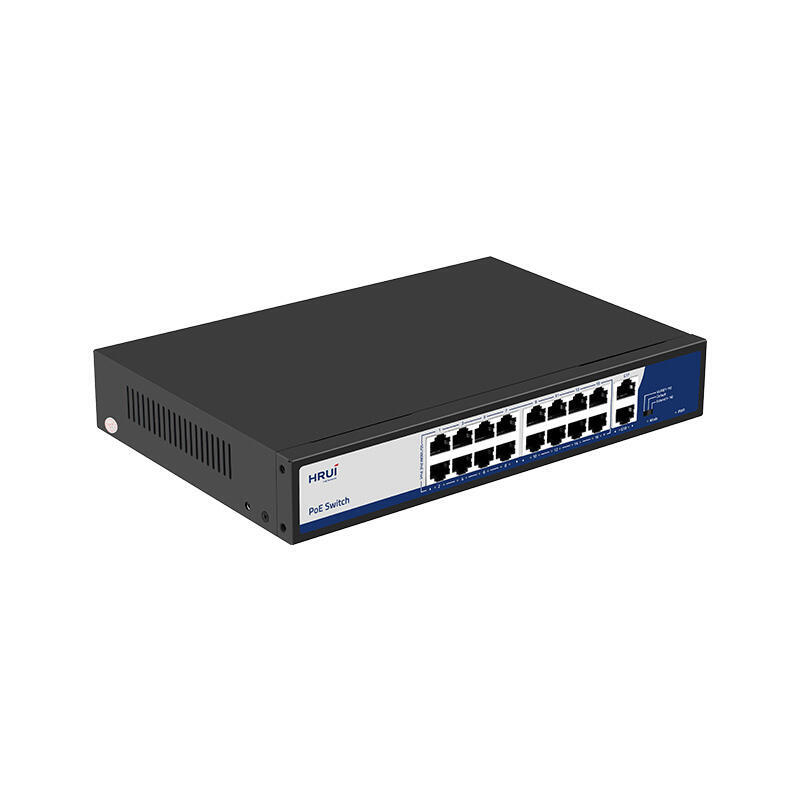

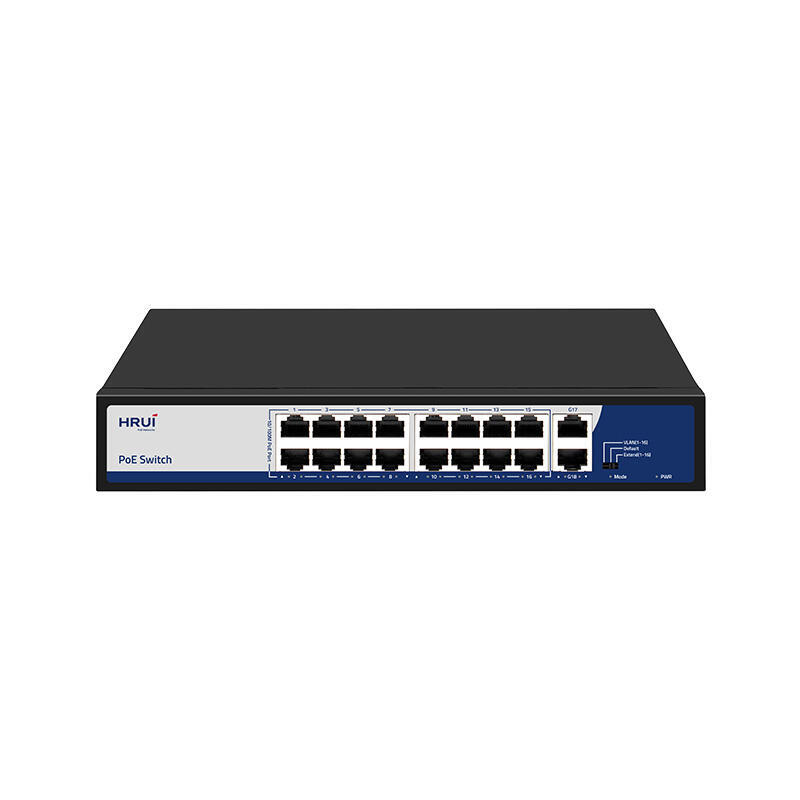

سوئیچ PoE اچ ار یو ای HRUI HR902- AF-162G-300
– سوئیچ 16 پورت 10/100Mbps PoE و 2 پورت Uplink گیگ
– سوئیچ PoE
– توان کل 300 وات
– 30 ماه وارانتی بی قید و شرط
| Technical parameters | |
| Input/output interface | |
| Power | AC INPUT （100-240V） 50/60Hz |
| Ethernet |
16*10/100M PoE Port 2*Gigabit uplink RJ45 Port |
| Performance | |
| bandwidth | 7.2 Gbps |
| Packet forwarding rate | 5.35Mpps |
| Package cache | 1.5Mbit |
| MAC addess | 2K |
| Jumbo frames | 9216bytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 hours |
| Standard | |
| Network protocol |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE802.3x (Flow Control) |
| PoE Protocol |
IEEE802.3af （15.4W） IEEE802.3at （30W） |
| Network Medium |
10BASE-T: Cat 3、4、5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000Base-TX : Cat5 or more UTP/STP(≤100 meter) |
| Certificate | |
| Safety Certification | CE、FCC、RoHS |
| Environment Standard | |
| Working Environment |
Working Temperature：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~95%，non-condensing |
| Physical Features | |
| Dimension |
Product Dimension：268*181*44mm Package Dimension：312*262*84mm N. W：1.29KG(200w)/1.44KG(300w) G.W：1.77KG(200w)/1.92KG(300w) |
| Packing Info |
Carton MEAS：540*435*332mm Packing Qty：10 PCS Packing Weight：18.7KG(200w)/20.2KG(300w) |
| Power Voltage |
Input Voltage ：AC 100-240 V Power supply：52V 3.8A / 52V 5.76A |
| power |
Product power: maximum 10W / maximum 10W POE power: maximum 180W / maximum 280W |
| Packing list | Switch 1 pc, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair |
| Indicators | |
| LEDs | PWR（power supply），Mode（DIP），1-18 Green Light（Link&Data） |
| PWR | Lighting：Powered |
| Un-Light：No Power | |
| Mode | Lighting：VLAN（Port Isolation） |
| Un-Light：Default（General mode） | |
| Flash：Extend（Extend） | |
| 1-18 Green Light | Lighting：Connecting |
| Un-Light：Disconnect | |
| Flashing：Data Transmit | |
| VLAN |
Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate with the UP-link port. |
| Default | OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; |
| Extend | Extend : Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
