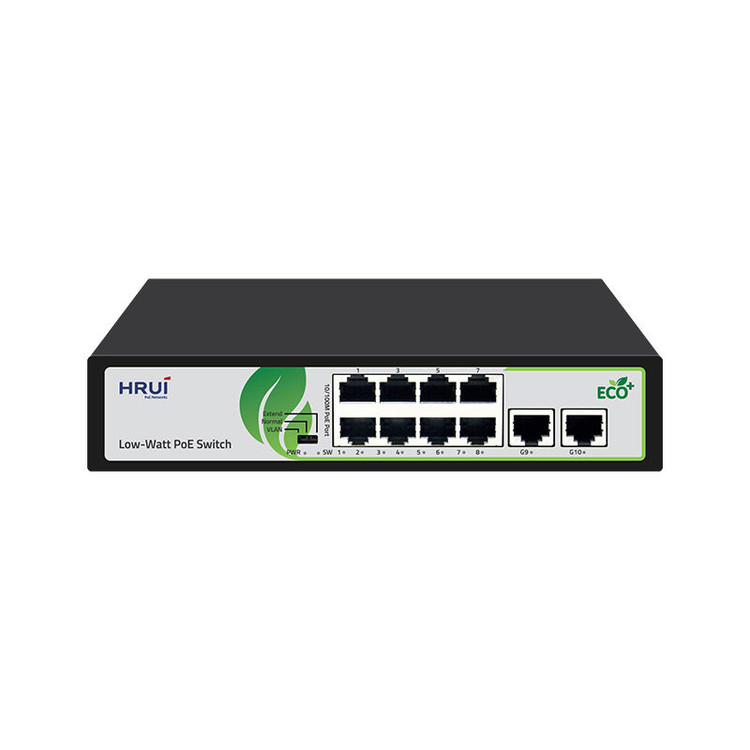

سوئیچ PoE اچ ار یو ای HRUI HR902-AF-82GN

موجود در انبار فروشگاه کم نیو
ارسال از امروز

3,250,000 تومان

مشاهده محصول در سبد خرید

– سوئیچ 8 پورت 10/100Mbps PoE و 2 پورت Uplink گیگ
– سوئیچ PoE
– توان کل 96 وات
– 18 ماه وارانتی بی قید و شرط



Hardware Features & Performance
Model HR902-AF-82GN
General Interface 8* 100Mbps PoE ports

2* 1000Mbps uplink RJ45 port
Port Standard IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3x (Flow Control)
Performance Switching Capacity 5.6Gbps
Packet Forwarding Rate 4.166Mpps
Packet Buffer 1Mbit
MAC Address Table 2K
Transmission Method Store and Forward
PoE PoE Standard IEEE802.3af （15.4W）

IEEE802.3at （30W）
PoE Port Output Voltage DC 44-57V
PoE Ports Port 1-8 PoE power output <30W
PoE Power Budget 90W
Physical Power Supply AC 100-240V  50/60Hz

DC 52V 1.85A
Mainboard Power Consumption 2.3W
Structure Information Product Dimensions :200*118*44mm

Packaging Dimensions : 245*190*60mm

Product Net Weight:0.60Kg

Product Gross Weight:0.90Kg
Packing Information Carton Dimensions :520*320*400mm

Packing Quantity: 20PCS

Packing Weight: 19KG
Packing List  switch 1pcs, power cord 1pcs, instruction manual 1pcs，certificate of qualification 1pcs
Fan Quantity 0
Installation desktop
Environment Surge  Protection
Operating Temperature 0~40°C
Storage Temperature -40 °C to 70 °C
Operation Humidity 10%~90%，non condensing
Storage Humidity 5%~95%，non condensing
Hardware Features & Performance
Buttons&

Indicator Lights

 PWR On: Powered on

Off: Powered off
SW On：VLAN

Flashing：Extend

Off：Normal
1-10 Green Light On: Link normal

Off: Link blocked

Flashing: Data transmitting
VLAN/Normal/Extend modes Buttons VLAN: Isolation mode, 1-8 ports isolated from each other, communicating with 9-10 ports

Normal: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive

Extend: Link extension mode, 1-8 ports data transmission distance can be extended to 250 meters, transmission speed is 10Mbps
‌‌‌‌‌‌
